Shanghai Yusoo Industrial Co., Limited
|
Mesh Pallet / Mesh Cage
| Price: | 40.0~60.0 USD |
| Payment Terms: | T/T, |
| Place of Origin: | Shanghai, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

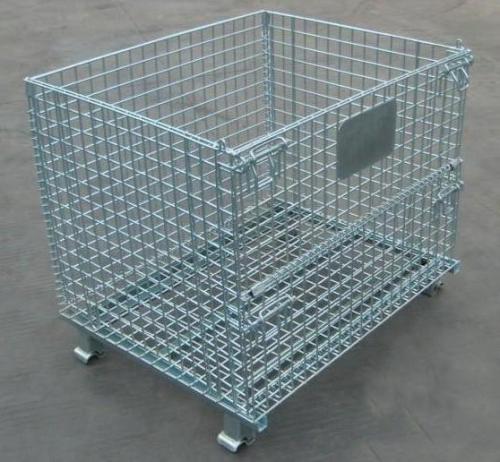

Mesh Pallet
Features: Save space, reasonable storage, a variety of types, easy to use, wide application.
Product Application: Used with a variety of means of transport, also used in the whole process of the material purchase, manufacture and sale products.
The specification can be customized as your demand and drawings as well.
For more information we can communicate by e-mail.
| Item | Nominal Size W*D*H(mm) | External Size W*D*H(mm) | Internal Size W*D*H(mm) | Mesh (mm) | Wire (mm) | Weight (kg) | Loading Capacity (kg) | Capacity (m 3 ) | door | Height of foot (mm) | The Distance between the foots W*L(mm) | Surface treatment | Stacking Capacity | QTY | |
| 40GP | 20GP | ||||||||||||||
| A-3 | 800*600*640 | 820*620*655 | 750*550*500 | 50*50 | 6.0 | 32 | 500 | 0.21 | half-open | 100 | 675*365 | Electro-galvanized | 4 | 696 | 360 |
| A-4 | 1000*600*640 | 1020*620*655 | 950*550*500 | 50*50 | 6.0 | 37 | 1000 | 0.26 | half-open | 100 | 875*365 | Electro-galvanized | 4 | 495 | 225 |
| A-5 | 1000*800*840 | 1020*820*855 | 950*750*700 | 50*50 | 6.0 | 49 | 1200 | 0.5 | half-open | 100 | 875*565 | Electro-galvanized | 4 | 484 | 220 |
| A-6 | 1200*800*840 | 1220*820*855 | 1150*950*750 | 50*50 | 6.0 | 55 | 1200 | 0.6 | half-open | 100 | 1075*565 | Electro-galvanized | 4 | 330 | 165 |
| A-7 | 1200* 1000*890 | 1220*1020*905 | 1150*950*750 | 50*50 | 6.0 | 65 | 1500 | 0.82 | half-open | 100 | 1075*765 | Electro-galvanized | 4 | 270 | 120 |
| B-5 | 1000*800*840 | 1020*820*855 | 950*750*700 | 50*50 | 6.4 | 55 | 1500 | 0.5 | half-open | 100 | 875*565 | Electro-galvanized | 4 | 440 | 200 |
| B-7 | 1200*1000*890 | 1220*1020*905 | 1150*950*750 | 50*50 | 6.4 | 71 | 2000 | 0.82 | half-open | 100 | 1075*765 | Electro-galvanized | 4 | 252 | 112 |
| B5-1/2 | 1000*800*490 | 950*750*350 | 1000*800*350 | 50*50 | 6.4 | 40 | 1000 | 0.25 | fully-open | 100 | 895*466 | Electro-galvanized | 4 | 528 | 240 |
| C-2 | 800*500*540 | 825*520*555 | 750*450*400 | 25*50 | 4.8 | 25 | 500 | 0.135 | half-open | 100 | 675*265 | Electro-galvanized | 3 | 832 | 408 |
| C-5 | 1000*800*840 | 1020*820*855 | 950*750*700 | 50*50 | 4.8 | 37 | 500 | 0.5 | half-open | 100 | 875*565 | Electro-galvanized | 3 | 484 | 220 |
| AS-5 | 1000*800*840 | 1020*820*855 | 950*750*700 | 50*100 | 6.0 | 43 | 1000 | 0.5 | fully-open | 100 | 875*565 | Electro-galvanized | 4 | 484 | 220 |
| AS-7 | 1200*1000*890 | 1220*1020*905 | 1150*950*750 | 50*100 | 6.0 | 56 | 1000 | 0.82 | fully-open | 100 | 1090*666 | Electro-galvanized | 4 | 252 | 112 |
| S-5 | 1000*800*840 | 1020*820*855 | 950*750*700 | 50*100 | 6.4 | 47 | 1000 | 0.5 | half-open | 100 | 875*565 | Electro-galvanized | 4 | 440 | 200 |
| S-6 | 1200*800*840 | 1220*820*855 | 1150*750*700 | 50*100 | 6.4 | 53 | 1000 | 0.6 | fully-open | 100 | 1090*466 | Electro-galvanized | 4 | 330 | 165 |
| S-7 | 1200*1000*890 | 1220*1020*905 | 1150*950*750 | 50*100 | 6.4 | 62 | 1200 | 0.82 | half-open | 100 | 1075*765 | Electro-galvanized | 4 | 270 | 120 |
